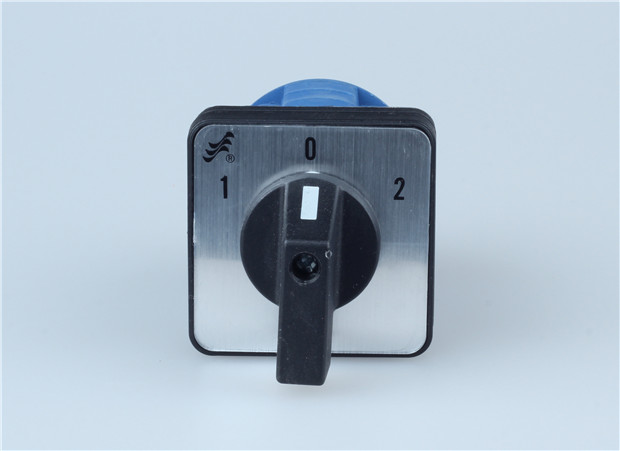

CHANGEOVER SWITCH LW26-20 1-0-2 3P Panel Mount
Two-position switch with “OFF” position used in control applications to change between alternate power supplies. This device can typically be used to manually switch power supplies from a primary source to a stand-by/emergency supply in the event of a power outage.
online service
CHANGEOVER SWITCH LW26-20 1-0-2 3P Panel Mount
Two-position switch with “OFF” position used in control applications to change between alternate power supplies. This device can typically be used to manually switch power supplies from a primary source to a stand-by/emergency supply in the event of a power outage.
Rotary Cam Switch, Changeover Switch, Three Position Switch, Manual change over switch, Transfer Switch
Kraus&Naimer/ Salzer/Bramas Switch/ Breter Switch/ Blue Line
|
Specification |
LW26-20 |
|||
|
LW26-20X |
||||
|
LW26-20C |
||||
|
Rated insulation voltage Ui V |
660/690 |
|||
|
Rated thermal current Ith A |
20 |
|||
|
Rated working voltage Ue V |
24 |
110 |
240 |
440 |
|
Rated working current Ie |
|
|
|
|
|
AC-21A |
|
|
20 |
20 |
|
AC-23A |
|
|
15 |
15 |
|
AC-2 |
|
|
15 |
15 |
|
AC-3 |
|
|
11 |
11 |
|
AC-4 |
|
|
3.5 |
3.5 |
|
AC-15 |
|
|
5 |
4 |
|
DC-13 |
12 |
0.4 |
0.4 |
|
|
Power |
|
|
|
|
|
AC-23A KW |
|
|
3.7/2.5 |
7.5/3.7 |
|
AC-2 KW |
|
|
4 |
7.5 |
|
AC-3 KW |
|
|
3/2.2 |
5.5/3 |
|
AC-4 KW |
|
|
0.55/0.75 |
1.5/1.5 |
