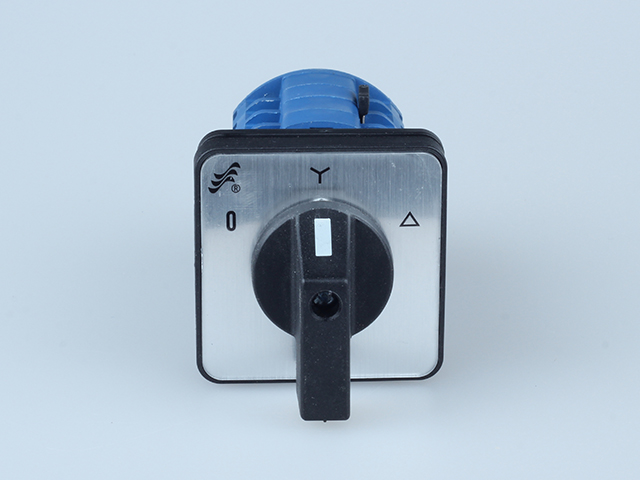

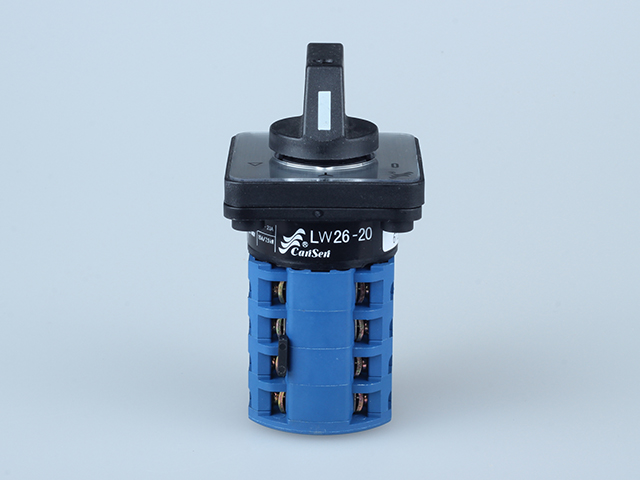

MOTOR SWITCH LW26-20 0-Y-△ Star Delta Panel Mount
Three-position (Off-Wye-Delta) switch used to manually control reduced-voltage motor starting. Operating the switch manually changes the wiring configuration of the motor from a star configuration to delta configuration after the controller operator has determined that the motor is up to operating speed.
online service
MOTOR SWITCH LW26-20 0-Y-△ Star-Delta Panel Mount
Three-position (Off-Wye-Delta) switch used to manually control reduced-voltage motor starting. Operating the switch manually changes the wiring configuration of the motor from a star configuration to delta configuration after the controller operator has determined that the motor is up to operating speed.
Motor Switch, Motor reversing switch, motor control switch, Star Delta switch, start and run switch, forward off reverse switch, Rotary Cam Switch
Kraus&Naimer/ Salzer/Bramas Switch/ Breter Switch/ Blue Line
Specification |
LW26-20 |
|||
LW26-20X |
||||
LW26-20C |
||||
Rated insulation voltage Ui V |
660/690 |
|||
Rated thermal current Ith A |
20 |
|||
Rated working voltage Ue V |
24 |
110 |
240 |
440 |
Rated working current Ie |
|
|
|
|
AC-21A |
|
|
20 |
20 |
AC-23A |
|
|
15 |
15 |
AC-2 |
|
|
15 |
15 |
AC-3 |
|
|
11 |
11 |
AC-4 |
|
|
3.5 |
3.5 |
AC-15 |
|
|
5 |
4 |
DC-13 |
12 |
0.4 |
0.4 |
|
Power |
|
|
|
|
AC-23A KW |
|
|
3.7/2.5 |
7.5/3.7 |
AC-2 KW |
|
|
4 |
7.5 |
AC-3 KW |
|
|
3/2.2 |
5.5/3 |
AC-4 KW |
|
|
0.55/0.75 |
1.5/1.5 |
