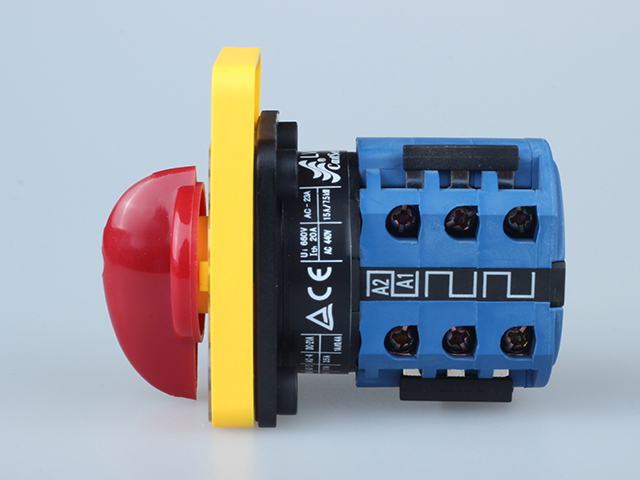

Ammeter Switch LW26-20 Yellow-Red Type LH3/3
Ammeter Switch is a kind of Multi-position switch used to connect one or more phases of an electrical supply to an ammeter, so that the current in each phase can be displayed on one ammeter.
online service
Ammeter Switch LW26-20 Yellow-Red Type LH3/3
Ammeter Switch is a kind of Multi-position switch used to connect one or more phases of an electrical supply to an ammeter, so that the current in each phase can be displayed on one ammeter.
Rotary Cam Switch, Ammeter Switch, LH3/3, 4 position Switch, Manual change over switch
Kraus&Naimer/ Salzer/Bramas Switch/ Breter Switch/ Blue Line
|
Specification |
LW26-20 |
|||
|
LW26-20X |
||||
|
LW26-20C |
||||
|
Rated insulation voltage Ui V |
660/690 |
|||
|
Rated thermal current Ith A |
20 |
|||
|
Rated working voltage Ue V |
24 |
110 |
240 |
440 |
|
Rated working current Ie |
|
|
|
|
|
AC-21A |
|
|
20 |
20 |
|
AC-23A |
|
|
15 |
15 |
|
AC-2 |
|
|
15 |
15 |
|
AC-3 |
|
|
11 |
11 |
|
AC-4 |
|
|
3.5 |
3.5 |
|
AC-15 |
|
|
5 |
4 |
|
DC-13 |
12 |
0.4 |
0.4 |
|
|
Power |
|
|
|
|
|
AC-23A KW |
|
|
3.7/2.5 |
7.5/3.7 |
|
AC-2 KW |
|
|
4 |
7.5 |
|
AC-3 KW |
|
|
3/2.2 |
5.5/3 |
|
AC-4 KW |
|
|
0.55/0.75 |
1.5/1.5 |
