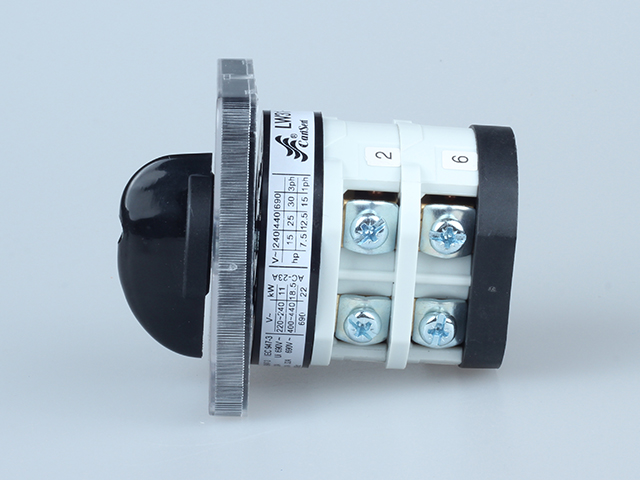

CHANGEOVER SWITCH LW31-32 1-0-2 2P Panel Mount
Two-position switch with “OFF” position used in control applications to change between alternate power supplies. This device can typically be used to manually switch power supplies from a primary source to a stand-by/emergency supply in the event of a power outage.
online service
CHANGEOVER SWITCH LW31-32 1-0-2 2P Panel Mount
Two-position switch with “OFF” position used in control applications to change between alternate power supplies. This device can typically be used to manually switch power supplies from a primary source to a stand-by/emergency supply in the event of a power outage.
Rotary Cam Switch, Changeover Switch, Three Position Switch, Manual change over switch, Transfer Switch
Kraus&Naimer/ Salzer/Bramas Switch/ Breter Switch/ Blue Line
|
Specification |
LW31-32 |
||||
|
Rated thermal current Ith A |
32 |
||||
|
Rated working voltage Ue V |
110 |
220 |
440 |
500 |
690 |
|
Rated working current Ie |
32 |
||||
|
AC-21A A |
32 |
||||
|
AC-22A A |
32 |
||||
|
DC-20 A |
|||||
|
Power |
|||||
|
AC-23A kW |
11 |
18.5 |
22 |
||
|
AC-3 kW |
7.5 |
15 |
18.5 |
||
|
AC-4 kW |
3 |
5.5 |
5.5 |
||
|
DC-23 kW |
2 |
2.2 |
|||
