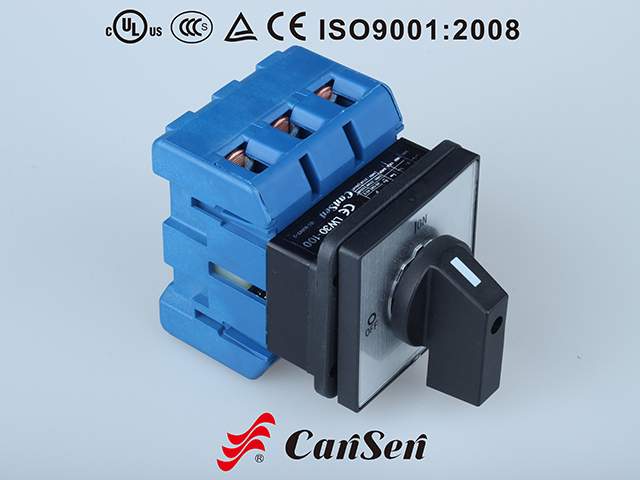

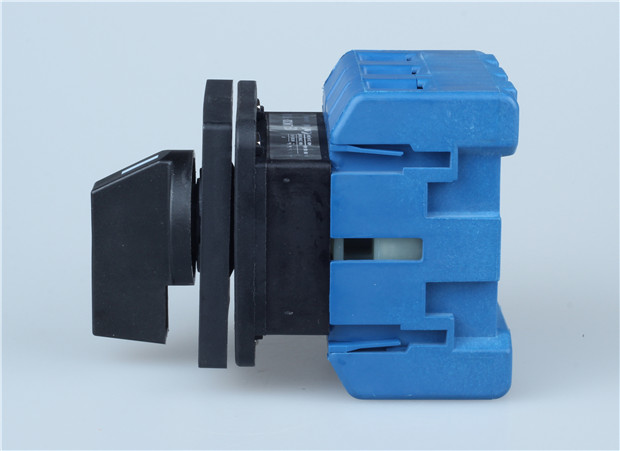

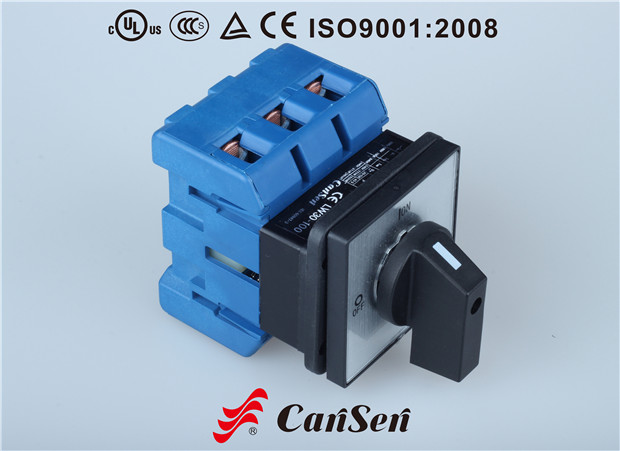

ISOLATOR MAIN SWITCH LW30-100 300020 Panel Mount
ISOLATOR MAIN SWITCH LW30-100 300020 Panel Mount can be used for illumination equipments, heating equipments and motors. Their high ON-OFF ability can ensure the work reliability at frequently making and breaking.
online service
ISOLATOR MAIN SWITCH LW30-100 300020 Panel Mount can be used for illumination equipments, heating equipments and motors. Their high ON-OFF ability can ensure the work reliability at frequently making and breaking.
Main Switch, ON/OFF switch, Maintenance Switch, Disconnect, Safety Switch, Padlock Switch, Selector Knob Switch, Emergency Stop, Isolator Switch
Kraus&Naimer/ Salzer/Bramas Switch/ Breter Switch/ Blue Line
|
Specification |
LW30-100 |
|
|
Rated thermal current Ith A |
100 |
|
|
Rated working voltage Ue V |
240 |
440 |
|
Rated working current Ie/Pe |
|
|
|
AC-21A A/kW |
100/- |
100/- |
|
AC-22A A/kW |
100/- |
100/- |
|
AC-23A A/kW |
70/22 |
70/37 |
|
AC-3 A/kW |
57/18.5 |
57/30 |
