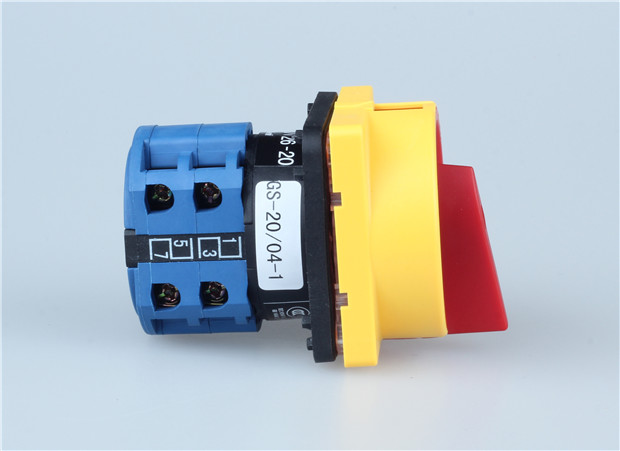

ROTARY CAM SWITCH, Main Switch LW26S-20 0-1 4P Single Hole Mount with plate and key
Can be used for illumination equipments, heating equipments and motors. Their high ON-OFF ability can ensure the work reliability at frequently making and breaking.
The handle is a key, they can be used as maintenance switch. The key-lock handle can ensure personnel safety, the opening position will be clear and can’t reset automatically
rotary switch/ cam switch/ main switch/ isolator switch/ selector switch/ transfer switch/ emergency switch/ Kraus&Naimer/ Salzer/Bramas Switch/ Breter Switch/ Blue Line
online service
ROTARY CAM SWITCH LW26S-20 0-1 4P Single Hole Mount with plate and key
Can be used for illumination equipments, heating equipments and motors. Their high ON-OFF ability can ensure the work reliability at frequently making and breaking.
The handle is a key, they can be used as maintenance switch. The key-lock handle can ensure personnel safety, the opening position will be clear and can’t reset automatically
Main Switch, ON/OFF switch, Maintenance Switch, Disconnect, Safety Switch, Padlock Switch, Selector Knob Switch, Emergency Stop, Isolator Switch
Kraus&Naimer/ Salzer/Bramas Switch/ Breter Switch/ Blue Line
|
Specification |
LW26-20 |
|||
|
|
LW26-20X |
|||
|
|
LW26-20C |
|||
|
Rated insulation voltage Ui V |
660/690 |
|||
|
Rated thermal current Ith A |
20 |
|||
|
Rated working voltage Ue V |
24 |
110 |
240 |
440 |
|
Rated working current Ie |
|
|
|
|
|
AC-21A |
|
|
20 |
20 |
|
AC-23A |
|
|
15 |
15 |
|
AC-2 |
|
|
15 |
15 |
|
AC-3 |
|
|
11 |
11 |
|
AC-4 |
|
|
3.5 |
3.5 |
|
AC-15 |
|
|
5 |
4 |
|
DC-13 |
12 |
0.4 |
0.4 |
|
|
Power |
|
|
|
|
|
AC-23A KW |
|
|
3.7/2.5 |
7.5/3.7 |
|
AC-2 KW |
|
|
4 |
7.5 |
|
AC-3 KW |
|
|
3/2.2 |
5.5/3 |
|
AC-4 KW |
|
|
0.55/0.75 |
1.5/1.5 |
