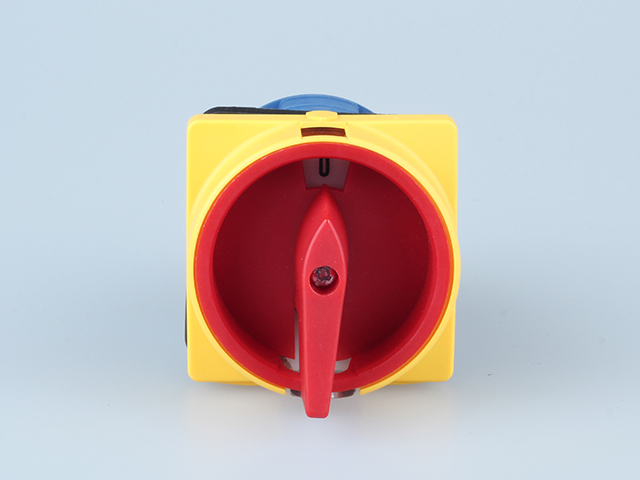

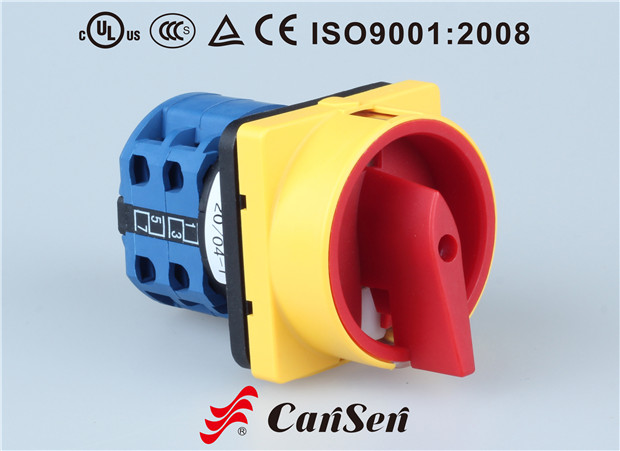

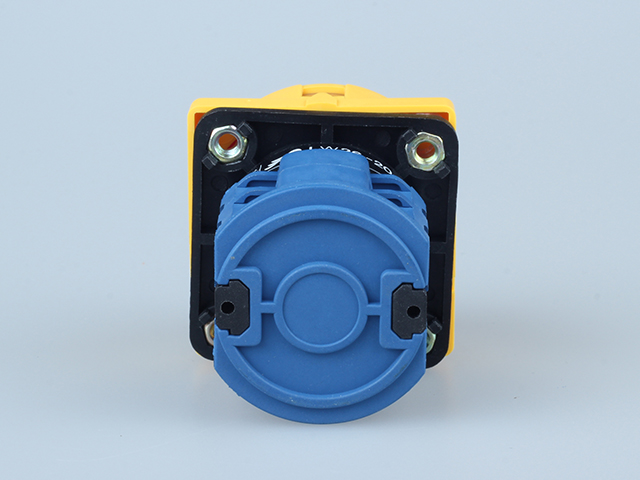

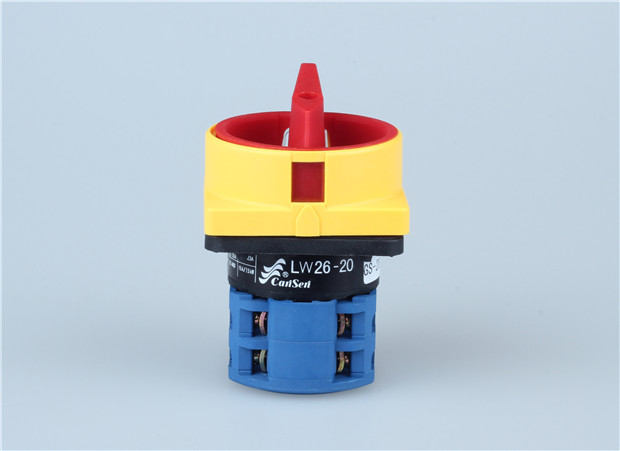

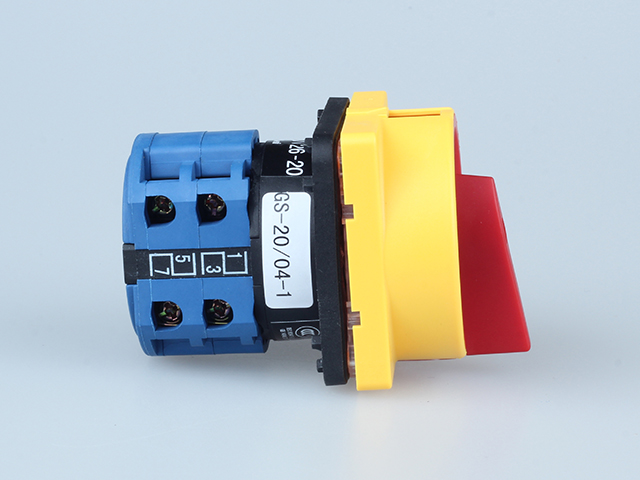

ROTARY CAM SWITCH, Main Switch LW26GS-20 04-1 Padlock Mount

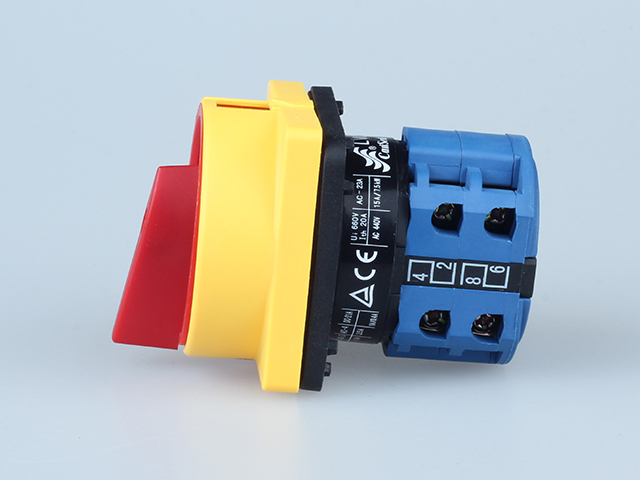

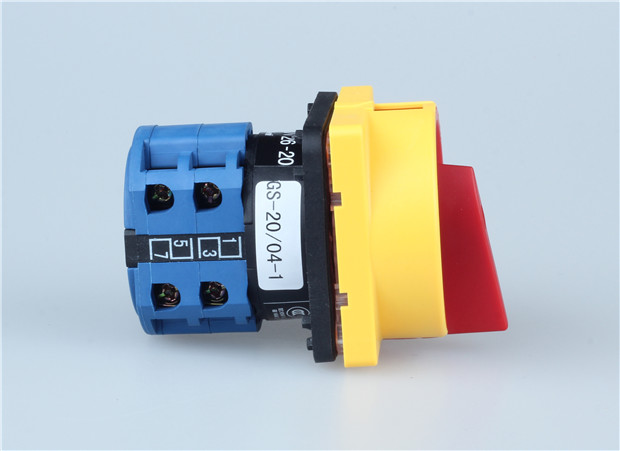

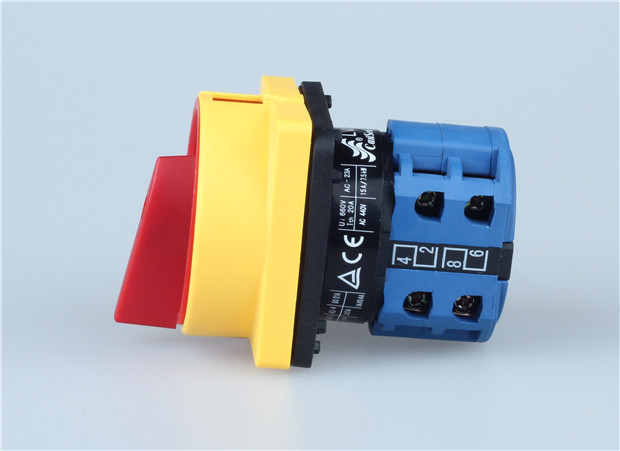

ROTARY CAM SWITCH LW26GS-20 04-1 Padlock Mount
Can be used for illumination equipments, heating equipments and motors. Their high ON-OFF ability can ensure the work reliability at frequently making and breaking.

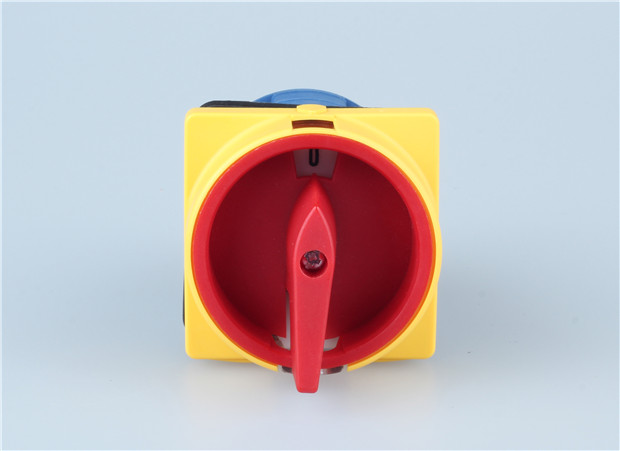

The handle is a padlock type, they can be used as maintenance switch. The padlock handle can ensure personnel safety, the opening position will be clear and can’t reset automatically

rotary switch/ cam switch/ main switch/ isolator switch/ selector switch/ transfer switch/ emergency switch/ Kraus&Naimer/ Salzer/Bramas Switch/ Breter Switch/ Blue Line

online service

Tel:0086-577-62787525

Email: davychen@cansen.com

Skype: cansenswitch

Fax: 0086-577-62760995

ROTARY CAM SWITCH LW26GS-20 04-1  Padlock Mount
Can be used for illumination equipments, heating equipments and motors. Their high ON-OFF ability can ensure the work reliability at frequently making and breaking.
The handle is a padlock type, they can be used as maintenance switch. The padlock handle can ensure personnel safety, the opening position will be clear and can’t reset automatically

Main Switch, ON/OFF switch, Maintenance Switch, Disconnect, Safety Switch, Padlock Switch, Selector Knob Switch, Emergency Stop, Isolator Switch
Kraus&Naimer/ Salzer/Bramas Switch/ Breter Switch/ Blue Line



Specification

LW26-20


LW26-20X


LW26-20C

Rated insulation voltage  Ui  V

660/690

Rated thermal current  Ith  A

20

Rated working voltage  Ue  V

24

110

240

440

Rated working current  Ie





AC-21A



20

20

AC-23A



15

15

AC-2



15

15

AC-3



11

11

AC-4



3.5

3.5

AC-15



5

4

DC-13

12

0.4

0.4


Power





AC-23A  KW



3.7/2.5

7.5/3.7

AC-2    KW



4

7.5

AC-3    KW



3/2.2

5.5/3

AC-4    KW



0.55/0.75

1.5/1.5
