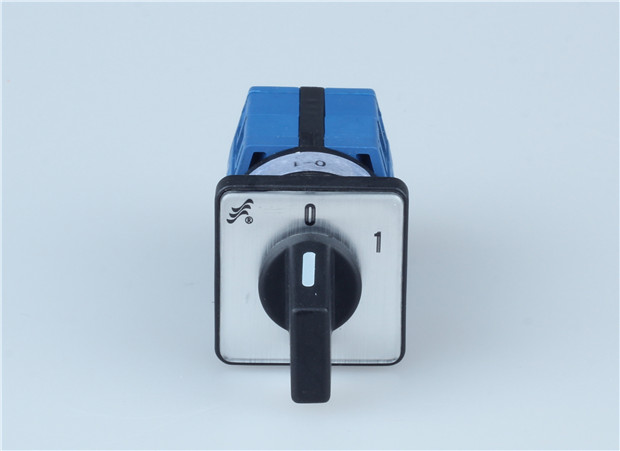

ROTARY CAM SWITCH, Main Switch LW26-10X 0-1 4P Panel Mount
LW26-10 mainly used for elevator, like elevator control circuit and maintenance.
online service
|
Specification |
LW26-10 |
|
|
|
LW26-10G |
|
|
|
LW26X-10X |
|
|
Rated insulation voltage Ui V |
660/690 |
|
|
Rated thermal current Ith A |
10 |
|
|
Rated working voltage Ue V |
240 |
440 |
|
Rated working current Ie |
|
|
|
AC-21A |
10 |
10 |
|
AC-23A |
7.5 |
7.5 |
|
AC-2 |
7.5 |
7.5 |
|
AC-3 |
5.5 |
5.5 |
|
AC-4 |
1.75 |
1.75 |
|
AC-15 |
2.5 |
2.5 |
|
DC-13 |
|
|
|
Power |
|
|
|
AC-23A KW |
1.8 |
3 |
|
AC-2 KW |
2.5 |
3.7 |
|
AC-3 KW |
1.5 |
2.2 |
|
AC-4 KW |
0.37 |
0.55 |
