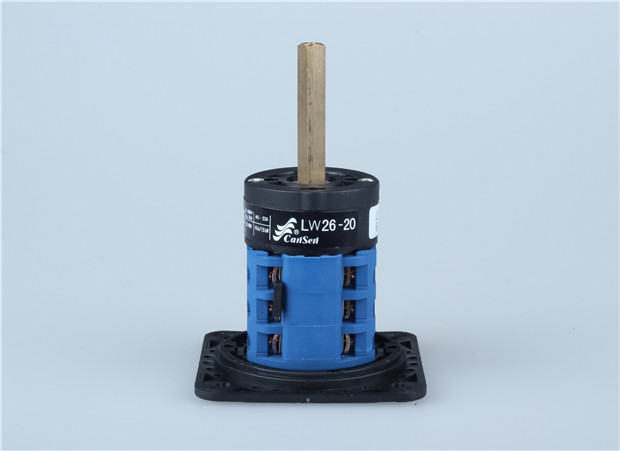

MOTOR SWITCH LW26-20 L-O-P with long metal shaft Base Mount
Three-phase, three-position (Forward-Off-Reverse/ L-O-P) switch used to manually control a motor’s direction of rotation. Operating the switch changes the wiring configuration of the motor to operate in the forward or reverse direction.
online service
MOTOR SWITCH LW26-20 L-O-P with long metal shaft Base Mount
Three-phase, three-position (Forward-Off-Reverse/ L-O-P) switch used to manually control a motor’s direction of rotation. Operating the switch changes the wiring configuration of the motor to operate in the forward or reverse direction.
Motor Switch, Motor reversing switch, motor control switch, Star Delta switch, start and run switch, forward off reverse switch, Rotary Cam Switch
Kraus&Naimer/ Salzer/Bramas Switch/ Breter Switch/ Blue Line
|
Specification |
LW26-20 |
|||
|
LW26-20X |
||||
|
LW26-20C |
||||
|
Rated insulation voltage Ui V |
660/690 |
|||
|
Rated thermal current Ith A |
20 |
|||
|
Rated working voltage Ue V |
24 |
110 |
240 |
440 |
|
Rated working current Ie |
|
|
|
|
|
AC-21A |
|
|
20 |
20 |
|
AC-23A |
|
|
15 |
15 |
|
AC-2 |
|
|
15 |
15 |
|
AC-3 |
|
|
11 |
11 |
|
AC-4 |
|
|
3.5 |
3.5 |
|
AC-15 |
|
|
5 |
4 |
|
DC-13 |
12 |
0.4 |
0.4 |
|
|
Power |
|
|
|
|
|
AC-23A KW |
|
|
3.7/2.5 |
7.5/3.7 |
|
AC-2 KW |
|
|
4 |
7.5 |
|
AC-3 KW |
|
|
3/2.2 |
5.5/3 |
|
AC-4 KW |
|
|
0.55/0.75 |
1.5/1.5 |
