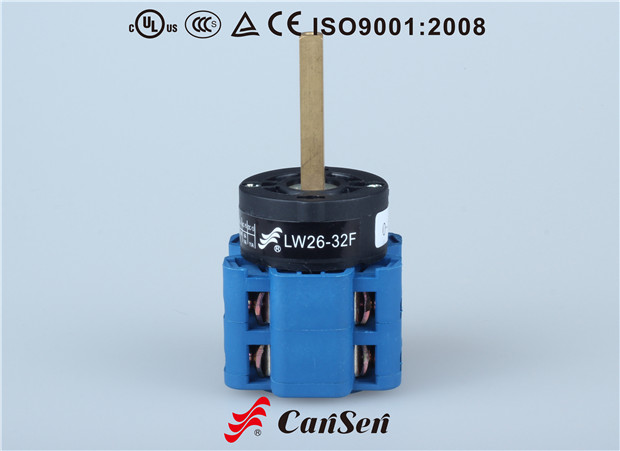

ROTARY CAM SWITCH, Main Switch LW26-32F 0-1 3P Longer Metal Shaft Double hole Mount
LW26-32F main switch with long metal shaft.
Can be used for illumination equipments, heating equipments and motors. Their high ON-OFF ability can ensure the work reliability at frequently making and breaking.
rotary switch/ cam switch/ main switch/ isolator switch/ selector switch/ transfer switch/ emergency switch/ Kraus&Naimer/ Salzer/Bramas Switch/ Breter Switch/ Blue Line
online service
LW26-32F main switch with long metal shaft.
Can be used for illumination equipments, heating equipments and motors. Their high ON-OFF ability can ensure the work reliability at frequently making and breaking.
Main Switch, ON/OFF switch, Maintenance Switch, Disconnect, Safety Switch, Padlock Switch, Selector Knob Switch, Emergency Stop, Isolator Switch
Kraus&Naimer/ Salzer/Bramas Switch/ Breter Switch/ Blue Line
|
Specification |
LW26-32 |
|
|
|
|
|
|
|
LW26-32F |
|
|
Rated insulation voltage Ui V |
660/690 |
|
|
Rated thermal current Ith A |
32 |
|
|
Rated working voltage Ue V |
240 |
440 |
|
Rated working current Ie |
|
|
|
AC-21A |
32 |
32 |
|
AC-23A |
30 |
30 |
|
AC-2 |
30 |
30 |
|
AC-3 |
22 |
22 |
|
AC-4 |
11 |
11 |
|
AC-15 |
14 |
6 |
|
DC-13 |
|
|
|
Power |
|
|
|
AC-23A KW |
7.5/4 |
15/7.5 |
|
AC-2 KW |
7.5 |
15 |
|
AC-3 KW |
5.5/4 |
11/5.5 |
|
AC-4 KW |
2.7/1.5 |
5.5/3 |
